Name: High-Pressure Thermogravimetric Balance
Brand: Beijing HENVEN Experimental Equipment Co., Ltd.
Price: 100 USD

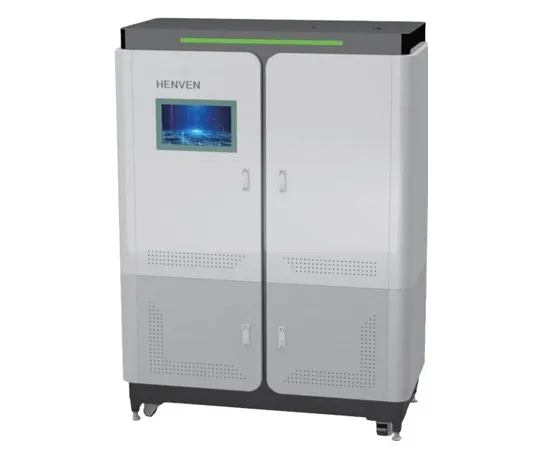

HTF High-Pressure Thermogravimetric Balance

The HTF series high-pressure thermogravimetric balance adopts a new and unique design, enabling thermogravimetric analysis under high-pressure and water vapor conditions. Its high-precision pressure control and accurate water vapor flow control allow users to better analyze the component change processes of materials such as coal, petroleum, and biomass under high pressure, providing better support for fields like process optimization and quality control.

Instrument Feature of HTF High-Pressure Thermogravimetric Balance

01

1

Integrated design of mechanics, circuit, and atmosphere control.
02

2

Automatic furnace lifting with accurate positioning and high measurement repeatability.
03

3

Large-screen LCD display for real-time presentation of instrument status and data.
04

4

High-precision flow-controlled water vapor generation device.
05

5

Mass flow meter for precise control of gas flow.
06

6

Automatic data measurement and plotting. Powerful software data processing functions (including TG extrapolated temperature, 1%, 5%, 50% point temperatures, TG extrapolated end temperature, substance purity, data comparison, and establishment of standard database).
07

7

Software calibration for various parameters such as temperature and mass.

Instrument Parameter of HTF High-Pressure Thermogravimetric Balance

The horizontal axis can be scaled by either temperature or time.
The vertical axis can be scaled by either absolute weight or percentage
Built-in balance for automatic measurement of the initial sample weight.
The LCD screen displays furnace temperature, sample temperature, mass, gas circuit status, etc., in real time.
step cooling curve function
Crystallization Kinetics
Temperature Parameters
Measurement Range	RT-1300℃
Heating Rate	0.1℃/min-100℃/min
Balance Parameters
Measurement Range	0-50g or 0-500g(Other ranges can be customized)
Resolution	0.1μg
Thermogravimetric Noise	<0.1μg
Pressure Range	0.1-5MPa
Pressure Accuracy	0.01Mpa
Vacuum Degree (The instrument is equipped with vacuum sealing measures)	Up to 2.5×10⁻²Pa with optional vacuum unit
Atmosphere System	Equipped with mass flow meters (atmosphere control systems resistant to various corrosive gases can be customized)
Optional (Constant Temperature Controller; Constant Temperature GC-MS Connector; Constant Temperature Belt)	Constant Temperature Range: RT-200℃
Crucibles	-Standard Configuration: Ceramic crucibles (0.06mL or 0.12mL) -Optional Configuration: Aluminum crucibles, graphite crucibles, quartz crucibles, platinum crucibles
