Name: Ultra-High Temperature Differential Thermal Balance
Brand: Beijing HENVEN Experimental Equipment Co., Ltd.
Price: 100 USD

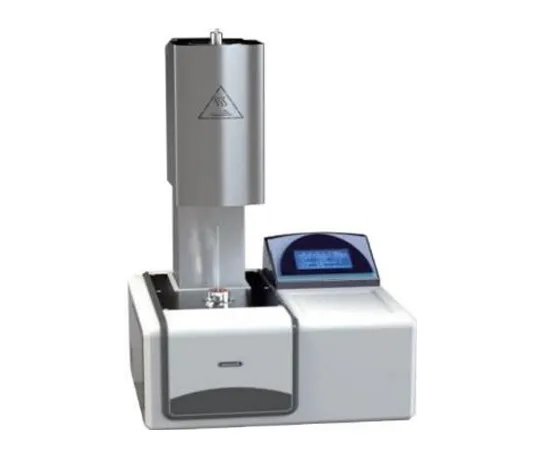

HGCT-1 Ultra-High Temperature Differential Thermal Balance

It is used to test the material properties of substances under high-temperature conditions, as well as the reaction rate, reaction kinetics, activation energy, etc. between different reactants under high-temperature conditions.

Application fields: aerospace, metal smelting and other industries.

Instrument Feature of HGCT-1 Ultra-High Temperature Differential Thermal Balance

01

1

Adopts a new double-helix graphite heating furnace design, achieving a high heating temperature of ≥1700℃. It features a long uniform temperature zone, long service life, and easy maintenance.
02

2

Vacuuming or inert gas filling in the furnace chamber is fully automated with one-key operation.
03

3

Testing atmospheres: oxidizing, reducing, inert, and water vapor.
04

4

Evolved gas analysis: dedicated mass spectrometry, infrared constant temperature connectors, connecting strips, and constant temperature controllers.
05

5

Data acquisition and analysis software: includes comprehensive data acquisition and analysis functions, text program editing, power-off data saving, 64 temperature control program segments, up to 99 experimental cycles, real-time data analysis, multi-curve comparison, evaluation data saving and export, ASCII data input and output, and data export to MS Excel, etc.

Instrument Parameter of HGCT-1 Ultra-High Temperature Differential Thermal Balance

Temperature Parameters		Balance Parameters
Temperature Range	RT~1700℃ (capable of long-term constant temperature and equipped with a furnace self-protection system )	Mechanical null-position photoelectric balance
Temperature Range		Thermogravimetric Range	1mg to 200mg; with replaceable support rods, the range can be adjusted from 0 to 5g
Temperature Accuracy	±0.1℃	Balance Sensitivity	0.1μg
Heating Rate	0.1℃/min~100℃/min	Thermogravimetric Noise	<0.1μg
DSC Parameters		Differential Thermal Parameters
DSC Range	0~±500mW	DTA Range	±2000μV
DSC Accuracy	±0.1μW	Resolution	0.01μV
Calibration Parameters	In Response ratio: >100 mW/K	Sample Atmosphere	Oxidation.Reduction.Inert. Vacuum
Enthalpy Accuracy	±0.1%(In)	standard configuration	Ceramic crucible: 0.06ml or 0.12ml
Temperature/enthalpy calibration	Multi-point standard samples, non-linear calibration technology	Optional crucibles	Aluminum Crucibles, Graphite Crucibles, Quartz Crucibles, Platinum Crucibles
